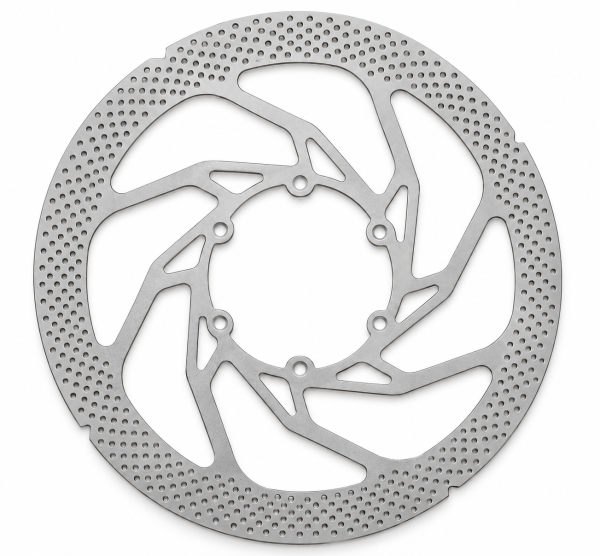

Product information "Punch Disc Brake Rotor | 30% More Cooling Surface | BrakeStuff"

Maximum Braking Power—Even Under Extreme Conditions

The BrakeStuff Punch Disc is a high-performance brake disc for demanding riders who need to rely on their braking performance at all times.

Shown here is the version for the 3X3 NINE gear hub.

Thanks to its innovative hole pattern, it offers significantly improved cooling—for consistent braking power, less fade, and reduced wear, even on long descents or under heavy loads.

The BrakeStuff Punch Disc is the ideal choice for anyone seeking maximum braking power, high durability, and reliable performance.

Get the brake disc that delivers even under extreme conditions—and feel the difference on every descent.

Your benefits at a glance:

✔ Up to 30% better heat dissipation → less brake fade

✔ Consistent braking performance even on long descents

✔ Less pad wear → saves money in the long run

✔ Extremely dimensionally stable → no warping in heat

✔ Quiet operation & consistent bite point

✔ Compatible with Shimano, SRAM, Magura, and many others

Who is this brake rotor ideal for:

This brake rotor was specially developed for:

MTB (trail, enduro, downhill)
E-bikes & heavy-duty systems
Long Alpine descents
Bikepacking & high sustained loads
Sporty riders with high expectations
Perfect for anyone who wants more control, safety, and performance.

Why the Punch Disc brakes better:

The specially designed hole pattern significantly increases the brake disc’s surface area.

What this means for you:

Heat is dissipated more quickly
Braking performance remains consistent
Less fading under sustained load

In addition, the many small holes ensure:

Even wear
Better self-cleaning
Less noise

Technical Highlights

High-alloy stainless steel (heat-treated)
Glass bead-blasted surface
Precision manufacturing for optimal concentricity and runout
3X3 NINE mounting

Compatibility

The brake rotor is compatible with: Shimano brake systems, SRAM / Avid, Magura, Formula, Hayes, Hope, Trickstuff, TRP

Recommended Brake Pads (organic / semi-metallic / organic-semi-metallic composite)

Sinter: Green & Blue

UMM: Trail & Metrop

Galfer: Black, Red, and Violet

Shimano N03A, D03S, G03A, and B01S

Magura 8.P Performance (limited compatibility)

Brake pads that are not optimally compatible with the Punch Disc

Trickstuff Standard and Power

Choose the right size for your bike and your intended use.

Rotor Size	Braking Surface	Thickness	Weight
180 mm	15,4 mm	1,95 mm	160 g
180 mm	15,4 mm	2,15 mm	171 g
200 mm	16,0 mm	2,15 mm	206 g
203 mm	16,0 mm	1,95 mm	197 g
203 mm	16,0 mm	2,15 mm	210 g
203 mm / 13,9 mm	13,9 mm	2,15 mm	199 g
203 mm	16,0 mm	2,30 mm	225 g
220 mm	16,4 mm	2,15 mm	242 g
223 mm	16,4 mm	2,30 mm	261 g

*Please note: Made from premium high-alloy stainless steel and heat-treated for durability, our rotors feature a glass-bead blasted finish to ensure instant braking power from the very first ride. The Ø160mm Punch Light version is not suitable for e-bikes or downhill bikes.

Information for the heat treatment:
For additional stability and strength, all our disc brakes are heat treated. During this process, basic strength in addition to the resilient properties of the material can be improved. As a result, our discs have a very high level of strength, and visibly lower wear, which gives the discs a longer life! In addition, the risk of bending the disc is reduced, so your disc should stay straighter, longer!
These effects are only visible when the disc is installed correctly, and the brake is used properly.

Close menu

Rotor Size:	120mm, 140 mm, 160mm, 180mm, 200mm, 203mm, 220mm, 223mm
Design:	Punch Disc
Standard / Pitch Circle Diameter PCD:	6-Hole (IS2000)
Material:	High alloy stainless steel ( AISI 420 C)
Surface treatment:	Heat treated and precision ground
Tightening Torque:	5-6 Nm
Recommended Brake Pads:	organisch - Shimano N03A, D03S, G03A und B01S
Quantity:	1x Brake Disc incl. 6 steel bolts T25
