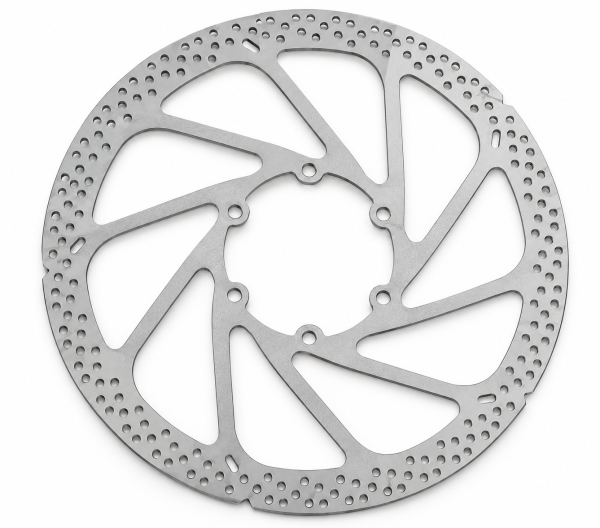

BrakeStuff brake disc XT-Design | 6-hole | AVID Shimano compatible
- Order number: 3X3-XT-180
Disc Rotor in hardened version in XT-Design, different Frictions Rings available This... more
Product information "BrakeStuff brake disc XT-Design | 6-hole | AVID Shimano compatible"
Disc Rotor in hardened version in XT-Design, different Frictions Rings available
This Version fits to the 3X3 NINE Gearhub.
Made from stainless steel which is hardened then ground flat, for a long lasting rotor with perfect trueness. Compatible with all major brake brands, just make sure the outer diameter is correct and the correct caliper adaptor is fitted.
Technical Specifications & Dimensions
Select the ideal combination for your setup. The friction ring width should be optimally tailored to your brake pads, as the thickness of the disc is a key factor for durability and heat dissipation.
| Rotor Size | Braking Surface | Thickness | Weight |
|---|---|---|---|
| 160 mm | 15,0 mm | 1,95 mm | 131 g |
| 160 mm | 18,0 mm | 1,95 mm | 157 g |
| 180 mm | 16,0 mm | 1,95 mm | 163 g |
| 180 mm | 16,0 mm | 2,15 mm | 180 g |
| 185 mm | 16,0 mm | 1,95 mm | 175 g |
| 200 mm | 16,0 mm | 2,30 mm | 229 g |
| 203 mm | 16,0 mm | 1,95 mm | 199 g |
| 203 mm | 18,0 mm | 1,95 mm | 209 g |
| 203 mm | 16,0 mm | 2,15 mm | 220 g |
| 203 mm | 16,0 mm | 2,30 mm | 235 g |
| 220 mm | 16,5 mm | 2,30 mm | 262 g |
*Please note: Made from premium high-alloy stainless steel and heat-treated for durability, our rotors feature a glass-bead blasted finish to ensure instant braking power from the very first ride
Compatibility
- AVID / SRAM
- Formula
- Hayes
- Hope
- Magura
- Shimano
Information for the heat treatment:
For additional stability and strength, all our disc brakes are heat treated. During this process, basic strength in addition to the resilient properties of the material can be improved. As a result, our discs have a very high level of strength, and visibly lower wear, which gives the discs a longer life! In addition, the risk of bending the disc is reduced, so your disc should stay straighter, longer!
These effects are only visible when the disc is installed correctly, and the brake is used properly.
Available downloads:
| Rotor Size: | 160mm, 180mm, 185mm, 200mm, 203mm, 220mm |
| Standard / Pitch Circle Diameter PCD: | 6-Hole (IS2000) |
| Disc Thickness: | 1.95 mm, 2.15 mm |
| Material: | High alloy stainless steel ( AISI 420 C) |
| Surface treatment: | Heat treated and precision ground |
| Tightening Torque: | 4-5 Nm |
| Quantity: | 1x Brake Disc incl. 6 steel bolts T25 |
